Description

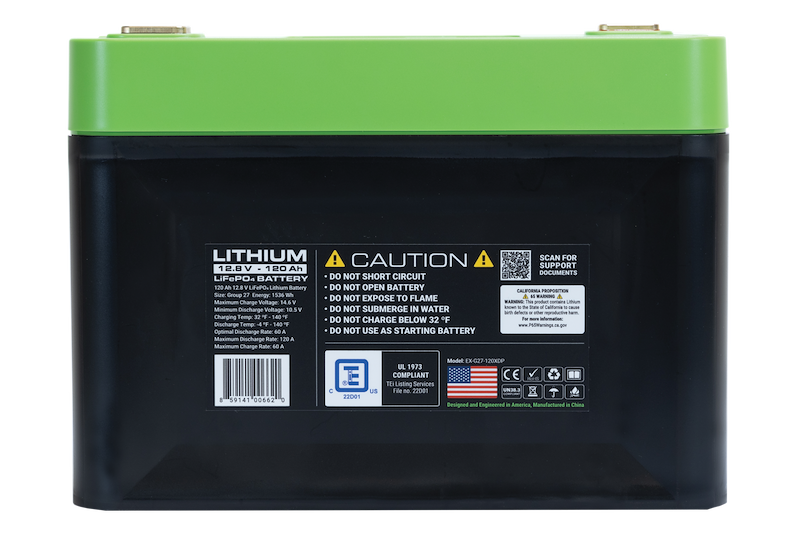

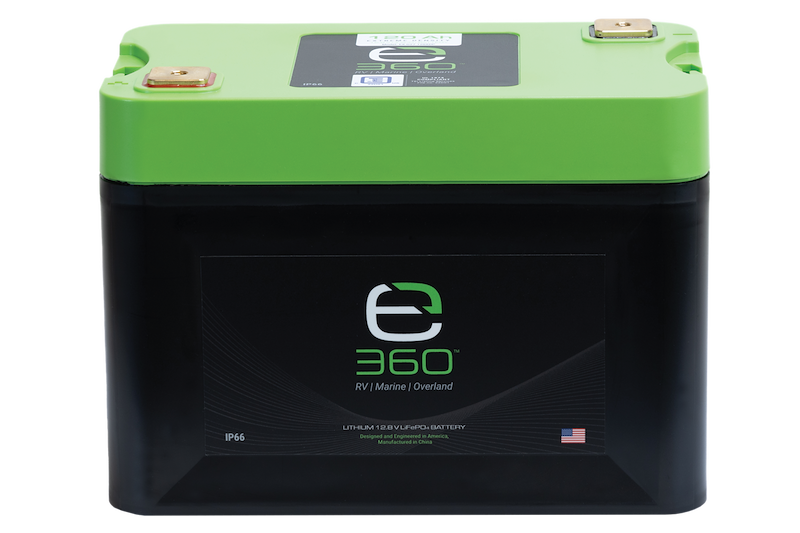

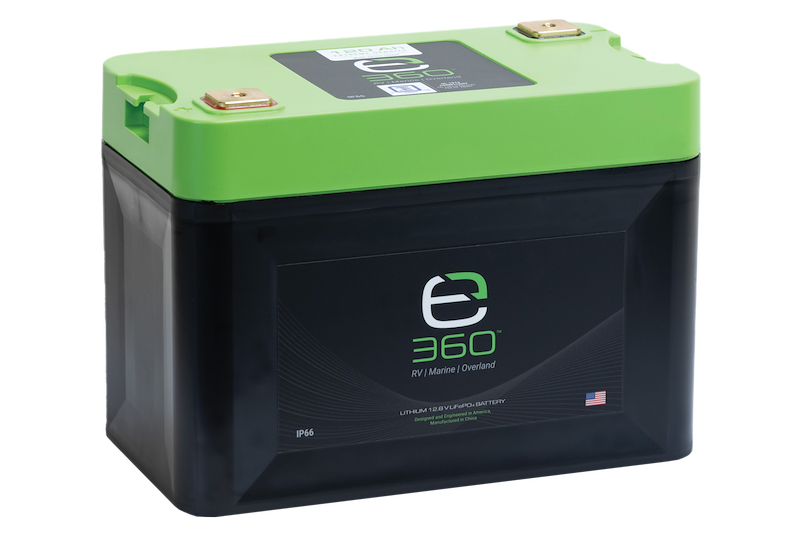

The Expion360 Group 27 120Ah Lithium Battery is a premium extreme-density LiFePO4 deep cycle battery engineered for high-demand RV, marine, overland, van build, and off-grid power systems. Designed to deliver maximum capacity in a compact Group 27 footprint, this 12.8-volt lithium battery offers outstanding efficiency, durability, and long-term reliability.
Featuring 120Ah capacity (approximately 1536Wh) and 99% energy efficiency, this battery utilizes UL1642-recognized 4.0Ah stainless-steel encased cylindrical cells to deliver more power with minimal added size or weight. An integrated Battery Management System (BMS) provides advanced protection against over-charge, over-discharge, short circuit, and temperature extremes.
The battery is housed in a premium fiberglass-reinforced ABS plastic case with IP66 moisture protection, making it well suited for harsh marine and outdoor environments. Designed and engineered in the USA, the Expion360 extreme-density battery meets UL1973 compliance standards for safety and performance.
Manufacturer Part Number: EX-G27-120-XD
Key Specifications
-
Manufacturer: Expion360
-
Manufacturer Part Number: EX-G27-120-XD
-
Product Type: Lithium Deep Cycle Battery
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
-
Application: RV / Marine / Off-Grid / Overland
-
Voltage: 12.8 Volts DC
-
Capacity: 120 Amp Hours
-
Energy Efficiency: 99%
-
BCI Group Size: Group 27
-

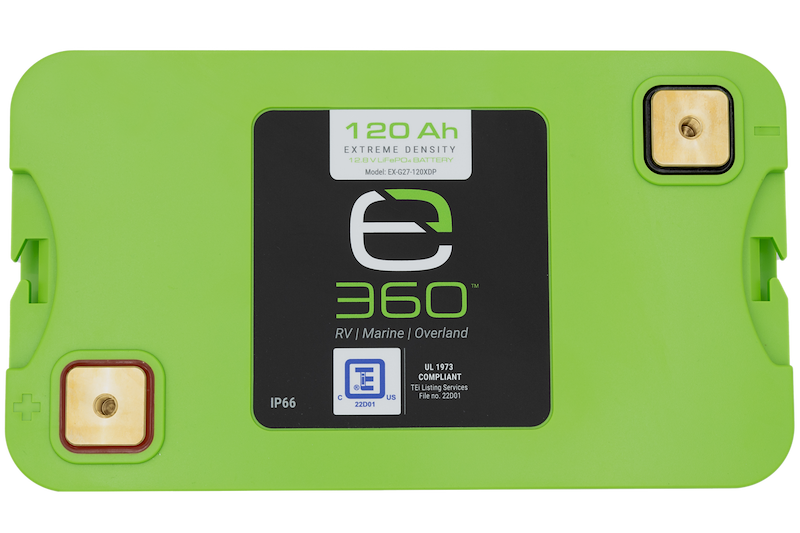

Terminal Type: M8 Threaded Stud (Top Terminal)
-
Charge Temperature Range: 32°F to 140°F
-
Moisture Protection: IP66
-
Length: 11.93 Inches
-
Width: 6.81 Inches
-
Height: 8.82 Inches
-
Battery Housing: Fiberglass-Reinforced ABS Plastic
-
Marine Rated: Yes
-
Universality: Fully Universal
Features & Benefits
-
Extreme-density LiFePO4 lithium chemistry for maximum power in minimal space
-
120Ah high-capacity output ideal for energy-intensive applications
-
Long cycle life with fast charging capability
-
Integrated Battery Management System (BMS) for safety and reliability
-
UL1973 compliant with UL1642-recognized Grade A cells
-
IP66 moisture resistance for marine and outdoor use
-
Maintenance-free operation with low self-discharge
-
Oversized terminal pads for secure, high-current connections
-
360-degree mounting capability with optional tie-down accessories
-
Designed and engineered in the USA
Additional Information
-
Non-Returnable Item
-
Limited 12-Year Manufacturer Warranty
