Description

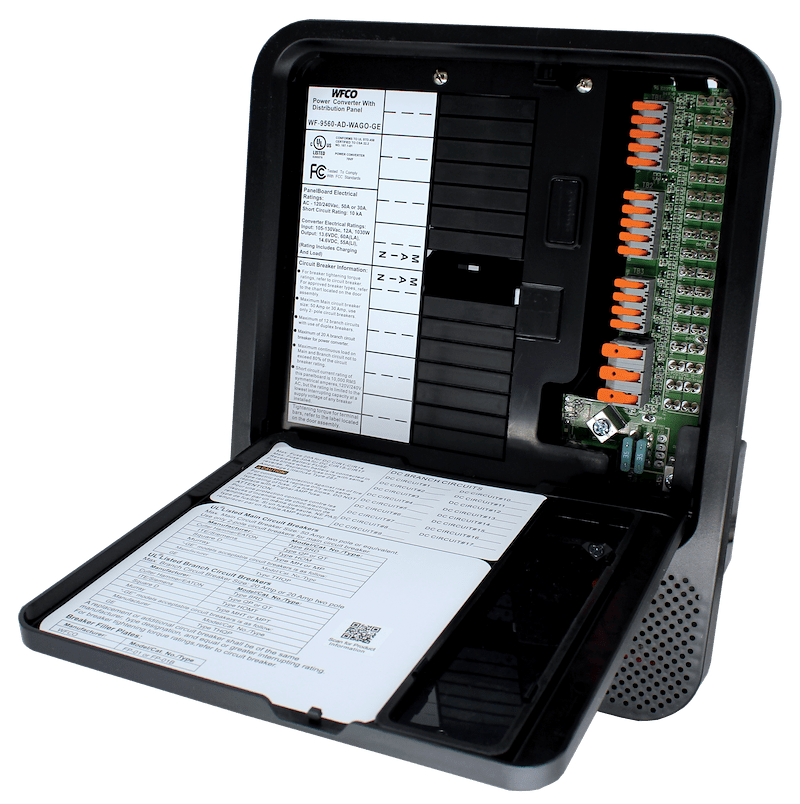

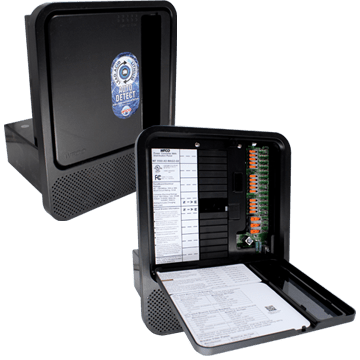

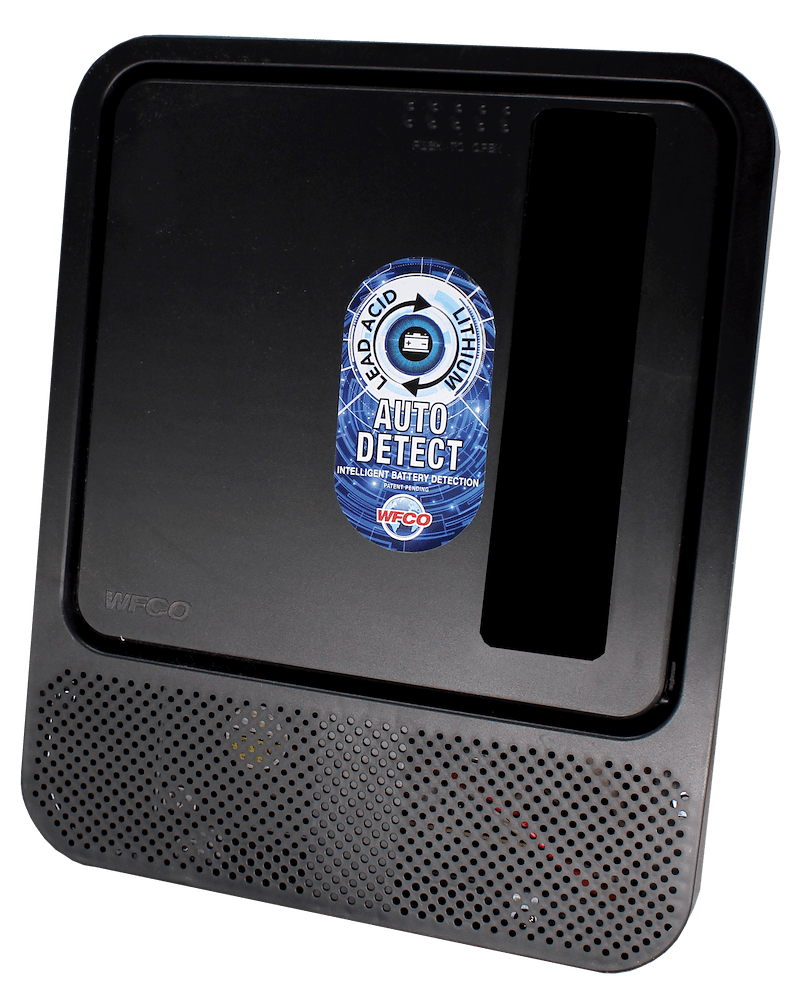

The WFCO 9500 Series Power Converter/Charger WF-9560-AD-S-B delivers an advanced 60-amp power solution engineered for RVs, marine, and off-grid applications. This high-efficiency unit converts 105-130V AC to 13.2-14.6V DC, providing up to 1030 watts of continuous power. Its intelligent three-stage charging system ensures optimal battery maintenance and extends battery life for lead acid, AGM, and LiFePO4 lithium batteries. Designed for seamless integration, the WFCO 9500 features FCC Class B compliance, built-in AC/DC distribution, and a compact zero-clearance front-ventilation design for space-saving installation.
Key Features
Smart Three-Stage Battery Charging
-
Float Mode (13.2V DC): Maintains battery health during standby
-
Absorption Mode (13.6V DC): Ensures optimal battery charge levels
-
Bulk Mode (14.4V DC): Rapidly charges deeply discharged batteries
Advanced Protection & Reliability
-
Built-in safeguards against over-temperature, overload, reverse polarity, and short circuits
-
Electronic current limiting to prevent damage to connected systems
Flexible AC and DC Distribution
-
Two 50A main AC breakers for primary power management
-
Supports up to twelve AC branch circuits with duplex breakers
-
Multiple DC circuit connection options: quick connect terminals, screw terminals, or wire pigtails
Efficient, Space-Saving Design
-
Front-cooled zero-clearance ventilation allows installation in tight spaces
-
Cooling fan activates only as needed for quiet operation
-
FCC Class B compliant to prevent interference with radios, TVs, and other electronics
Product Specifications
-
Continuous Output Power: 1030W
-
Ampere Rating: 60A DC (Lead Acid), 55A DC (Lithium)
-
Dimensions (L x W x H): 9-3/4" x 11-7/8" x 14-1/2"
-
Battery Compatibility: Lead Acid, AGM, LiFePO4 Lithium
-
Color: Black
-
Case Material: Durable Plastic
Why Choose the WFCO 9500 Series?
-
Provides high 60A output to meet demanding RV and off-grid power needs
-
Intelligent three-stage charging system prolongs battery life
-
Equipped with advanced safety features for reliable, worry-free operation
-
Space-saving zero-clearance front ventilation for easy, flexible installation
-
Backed by a limited 2-year warranty
The WFCO 9500 Series Power Converter/Charger is the perfect upgrade for efficient and reliable RV or off-grid power management. Experience smarter charging and superior performance to keep your battery system healthy and your power running smoothly.
