Xantrex Solar Max 110 Watt Slim Flexible Solar Panel – Mono-Crystalline PERC 784-0110S

The Xantrex Solar Max 110 Watt Slim Flexible Solar Panel delivers exceptional durability, performance, and flexibility for RV and marine solar applications. Engineered with Mono-Crystalline PERC cells and advanced mesh grid technology, this slim flexible panel offers industry-leading strength and reliability.

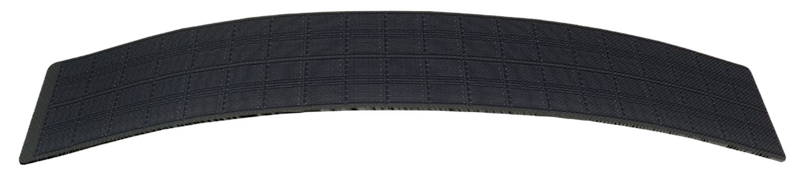

With approximately 2,000 contact points per cell, the Solar Max 110W panel can flex up to 180 degrees without affecting power output — making it ideal for curved surfaces and challenging installation environments. Tested to be 50 times more durable than standard flexible panels, it stands up to extreme weather and vibration conditions common in mobile and off-grid setups.

A protective ETFE (Ethylene-Tetra-Fluoro-Ethylene) top layer enhances light transmittance, corrosion resistance, and stain protection, outperforming traditional semi-flexible solar panels. The peel-and-stick mounting system offers a quick, drill-free installation using high-strength 3M adhesive, ensuring a secure fit in any temperature range.

Key Specifications

• Brand: Xantrex

• Model: Solar Max 110S

• Type: Slim Flexible Solar Panel / Mono-Crystalline PERC

• Compatibility: Extreme Solar Kit

• Power Rating: 110 Watt

• Charging Current: 4.5 Amp

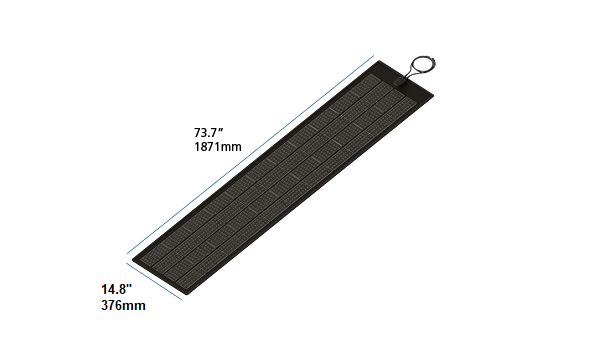

• Dimensions: 73.7” (L) × 14.8” (W) × 0.08” (T)

• Mounting Type: Peel-and-Stick (No Drilling Required)

• With Mounting Hardware: No

• With Carry Case: No

• Marine Rated: Yes

• With Charge Controller: No

• Manufacturer Part #: 784-0110S

• Warranty: Limited 5-Year Warranty

Features & Benefits

• Up to 180° Flexibility – Conforms easily to curved surfaces without compromising performance.

• 50x More Durable Than Standard Panels – Built for longevity in extreme weather and travel conditions.

• 20% More Energy Output – Maximizes solar capture even in shaded or low-light environments.

• Mesh Grid Technology – Increases efficiency, reduces failure risk, and enhances structural integrity.

• ETFE Protective Layer – Offers superior UV resistance, weatherproofing, and corrosion protection.

• Lightweight, Slim Design – Perfect for RV, marine, and off-grid solar systems where space and weight matter.

• Easy Peel-and-Stick Mounting – Drill-free installation with industrial-grade adhesive backing.

Ideal For

• RV owners looking for durable, low-profile flexible solar panels

• Marine and off-grid systems requiring high-efficiency solar generation

• Replacements or expansions for the Extreme Solar Kit

• Installations on curved or limited-surface areas where rigidity is not ideal
